Linsn MINI913A MINI913K LED Receiving Card LED Mini Receiving Card

Linsn MINI913A LED Receiver Card

Linsn Mini913A is a high-end and full-featured ultra-small size mini-receiver card. Compared with traditional receiver card, Mini913A uses high-density BTB connector. It is more flexible and it adapts to a variety of electronic circuit structure, achieving a card suitable for all applications, which will considerably reduce the types of purchasing receiver card.
The system, specific circuits and program design of Mini913A, can effectively reduce the electromagnetic radiation and effectively help products easily pass through the EMC test. Specific features are as follows:

• 1. Single card can support 32- group RGB data output mode;
• 2. Supports 64-group serial data output mode;
• 3. Realize high refresh and high gray level effect
• 4. Supports general driver IC and PWM IC;
• 5. Maximum supports 512X512 pixels;
• 6. Use 18-bit signal processor, maximum supporting 18-bit (260,000) gray (each of red, green and blue);
• 7. Supports single-card color space conversion;
• 8.Supports configuration file read back;
• 9.Supports network cable BER test;
• 10.Supports hot backup with dual receiver cards, dual power supplier, etc;

Linsn MINI913K LED Receiver Card

Linsn Mini913K is a high-end and full-featured ultra-small size mini-receiver card. Compared with traditional receiver card, Mini913K uses high-density BTB connector. It is more flexible and it adapts to a variety of electronic circuit structure, achieving a card suitable for all applications, which will considerably reduce the types of purchasing receiver card.
The system, specific circuits and program design of Mini913M, can effectively reduce the electromagnetic radiation and effectively help products easily pass through the EMC test. Specific features are as follows:

• 1.Single card can support 32- group RGB data output mode;
• 2.Supports 64-group serial data output mode;
• 3.Realizes high refresh and high gray level effect;
• 4.Supports general driver IC and PWM IC;
• 5.Maximum supports 512X512 pixels;
• 6.Use 18-bit signal processor, maximum supporting 18-bit (260,000) gray (each of red, green and blue);
• 7.Supports single-card color space conversion;
• 8.Supports configuration file read back;
• 9.Supports faulty pixel detection(requires dedicated ICs);
• 10.Supports network cable BER test;
• 11.Supports flat-cable detection;
• 12.Supports hot backup with dual network cables, dual power supplier, etc;
• 13.Allows to save calibration data on flash drive IC on module;
• 14.Supports temperature and humidity monitor;
• 15.Supports smoke detection;
• 16.Supports voltage detection;
• 17.Supports door status(open/close) and fan speed detection;
• 18.Supports LCD monitor display function;

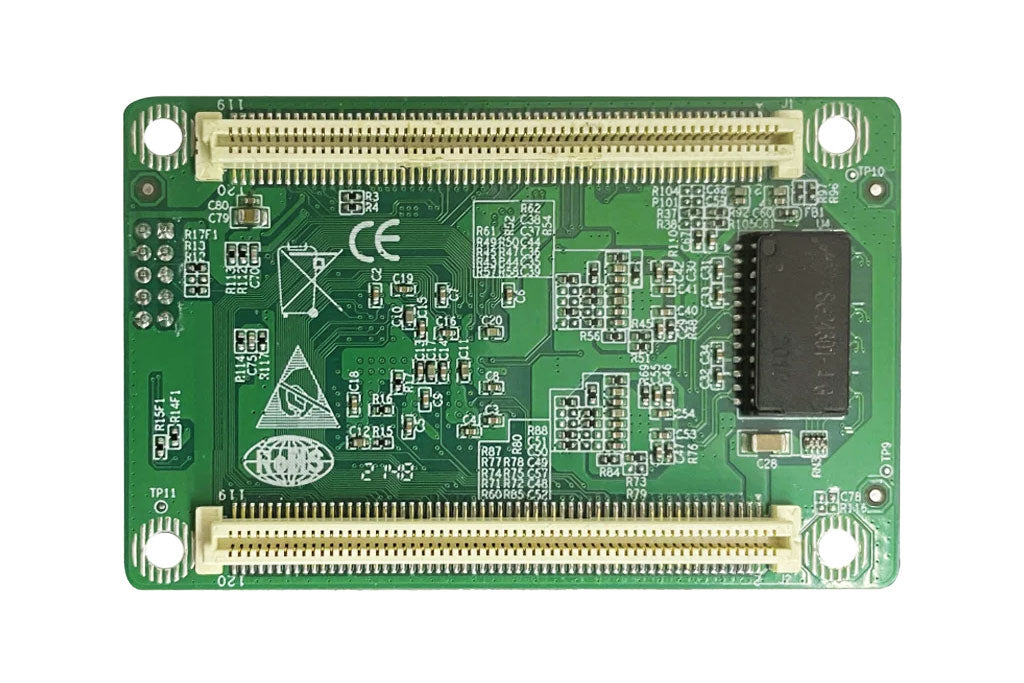

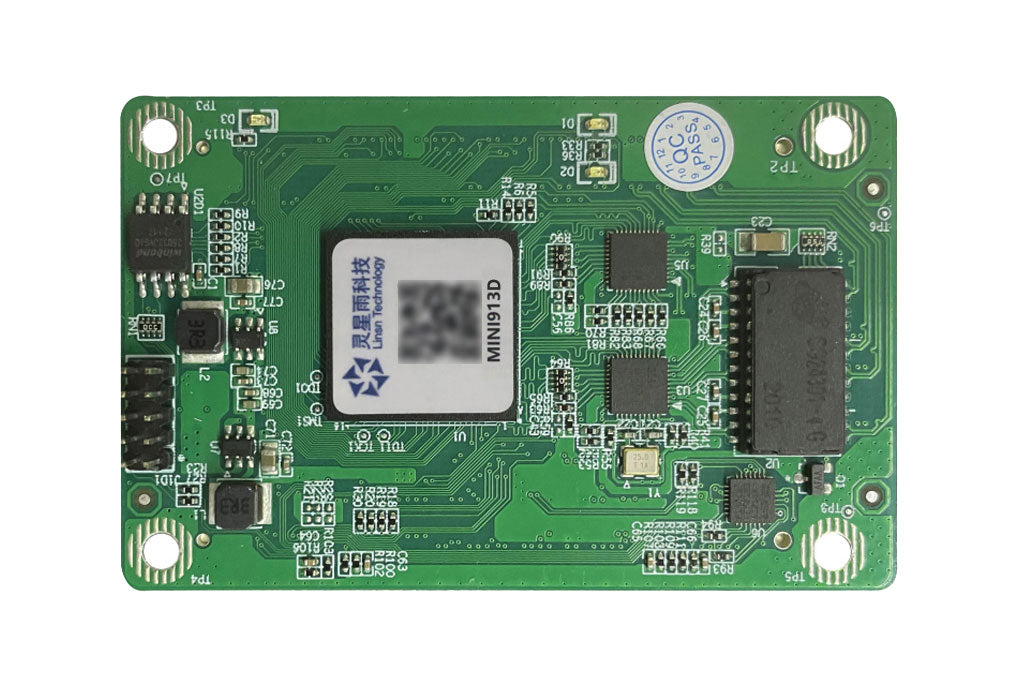

Linsn MINI913D LED Receiver Card

The Linsn MINI913D LED Display Receiving Card is a high-performance and versatile solution designed to meet the needs of modern LED display systems. Compact and efficient, the MINI913D ensures optimal performance for large-scale and high-resolution installations. Featuring flexible data output options and advanced calibration capabilities, this receiver card delivers vibrant, high-quality images with minimal interference. Ideal for a wide range of industrial and commercial applications, the MINI913D provides reliable, stable performance for your LED display systems.

• Compact Design: Small form factor, ideal for space-constrained installations without sacrificing performance.
• Full Compatibility: Compatible with 8th and 9th generation Linsn receiver cards, offering ease of integration and future-proofing for your LED display system.
• Multiple Data Output Modes:
  – Supports 24-group parallel RGB data output
  – Supports 64-group serial data output

• High Refresh Rate & Grayscale: Ensures smooth video playback with high refresh rates and superior grayscale effects for lifelike image quality.
• Flexible Scan Type Support: Supports a wide range of scan types, including 32-scan range, 595, and other serial decoding types.

• Pixel Calibration: Features pixel-by-pixel brightness and color calibration to ensure uniform display quality and accurate color reproduction.

• High Pixel Support: Supports up to 1024 x 256 pixels, making it suitable for large LED screens.

• 12-bit HDMI Input: Accepts 12-bit HDMI color input (requires 9th generation sending card), enhancing color depth and visual appeal.

• 18-bit Signal Processing: Equipped with an 18-bit signal processor, supporting up to 18-bit (260,000) grayscale per RGB color for high-quality display output.

• Hot Backup: Supports redundant configurations with dual receiver cards and power supplies for increased reliability and system uptime.

• Compliance: RoHS compliant and CE-EMC compliant, ensuring it meets international standards for environmental and electromagnetic compatibility.
