Huidu LCD Smart Motherboard HD-3568S LCD Multimedia Card
Huidu LCD Smart Motherboard HD-3568S LCD Multimedia Card
Huidu LCD Smart Motherboard HD-3568S LCD Multimedia Card

Huidu LCD Smart Motherboard HD-3568S LCD Multimedia Card LCD Display Controller

$120.00 USD $300.00
by Huidu
Type: Commercial Display
RAM/ROM
#Discount code: ---5% off [Over3000USD] | 10% off [Over6000USD]

Huidu LCD Smart Motherboard HD-3568S

HD-3568S is a well-built all-in-one motherboard, which adopts Rockchip RK3568 quad-core chip solution,equipped with Android11 system, and the main frequency can reach up to 2.0GHz, with super performance.
Adopt Mali-G52 GPU, support 4K 60fps H.265/H.264 video decoding. Support infrared remote control, Wi-Fi,RJ45 and other rich interfaces, making the product more versatile and widely used in intelligent control fields such as advertising machines, interactive all-in-one machines, security, medical, transportation, finance, industrial control,etc.
  • High performance. The RK3568 chip adopts the quad-core ARM Cortex-A55 architecture, and the main frequency can reach up to 2.0GHz, which is a qualitative leap in performance. It can play high-definition video in various formats and handle complex interactive operations.
  • High stability. RK3568 Android all-in-one board adds unique technology to ensure product stability in terms of hardware and software, and can make the final product reach 7*24 hours unattended.
  • High integration. RK3568 Android all-in-one board integrates Ethernet, EDP, Wi-Fi, power amplifier, and TF expansion card, USB expansion port, IR remote control function, TP, HDMI, LVDS, V-By-One interface,backlight control, microphone and other functions, which greatly simplifies the design of the whole machine.
  • High scalability. 7 USB (5 pins, 2 standard USB 3.0), 4 serial ports + 1 scalable debug serial port + 1 MCU programming serial port, 5 IO expansion ports can expand more peripheral devices.
  • High definition. Supports LCD displays with various LVDS/EDP/HDMI/V-By-One interfaces, and supports cutting screens of various sizes and resolutions.
  • It perfectly supports multiple mainstream touch screen functions such as multi-point infrared touch,multi-point capacitive touch, multi-point nano-film touch, multi-point acoustic wave touch, and multi-point optical touch.

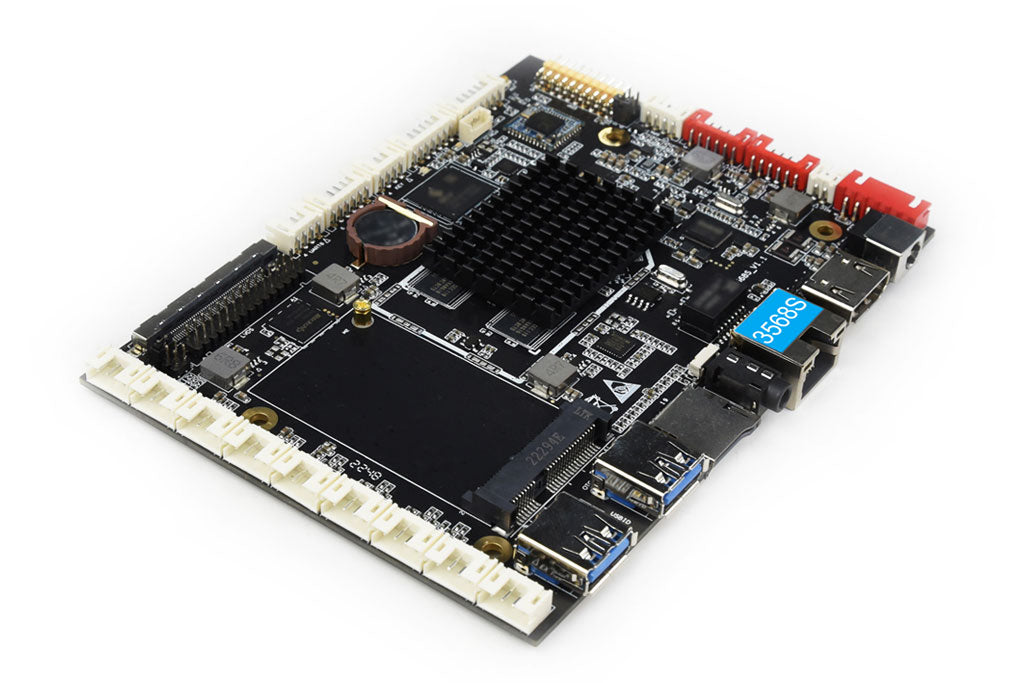

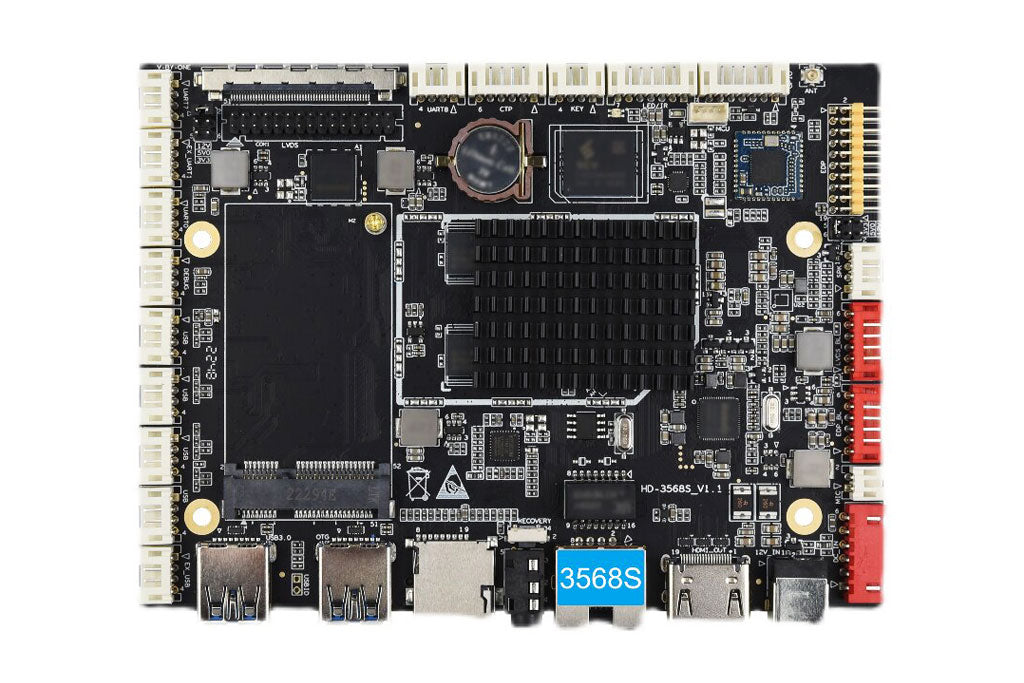

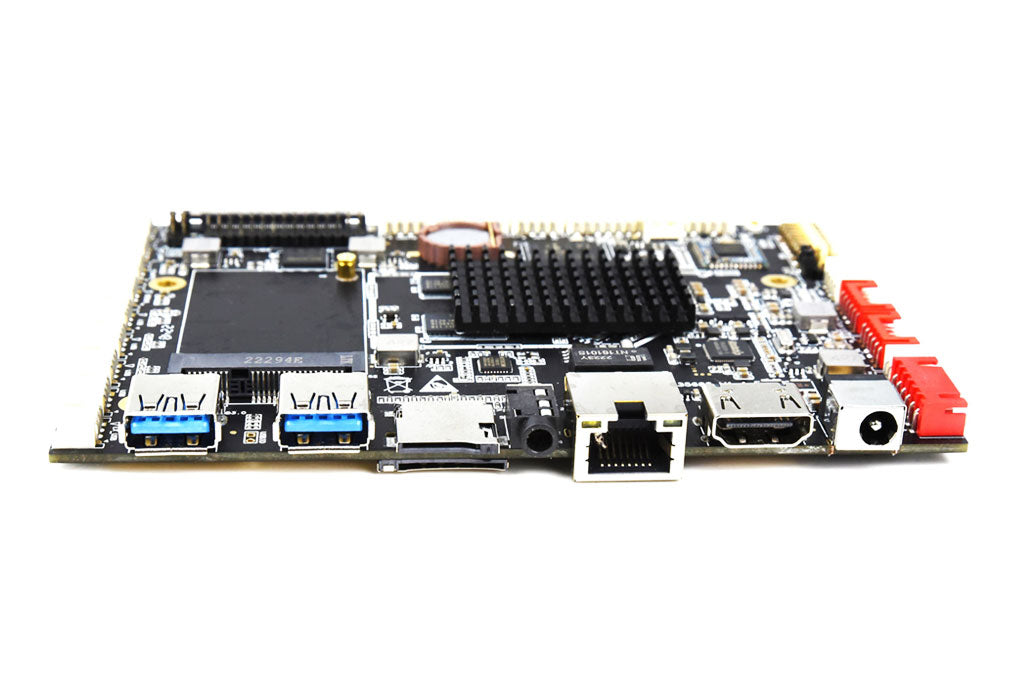

    Huidu LCD Smart Motherboard HD-3568S Product Diagram：

    Huidu LCD Smart Motherboard HD-3568S Size：

    Model
    		 HD-3568S
    CPU
    Quad-core 2.0GHz
    NPU
    1 TOPS
    System version
    Android 11.0
    Image display
    4K@60Hz
    Display interface
    V-by-One/LVDS、HDMI、eDP
    Wi-Fi
    2.4GHz
    （Optional 2.4G+5GHz）
    Bluetooth
    BT4.2
    LAN
    100Mbps
    Optional 4G/5G
    4G
    TF interface
    		 √
    HDMI input
    Optional 1×HDMI IN
    Extension interface
    USB 3.0 HOST,
    USB 3.0 OTG,
    5×USB 2.0, 5×UART,
    GPIO, KEY, RTC,
    IR, PCIe
    Messaging software
    Mobile APP,“LedArt”APP; Cloud Platform,XiaoHui Cloud; PC Software,LCD Player


    Further Information:
    Huidu HD-3568S
    Huidu HD-3568S LCD Controller Specification
