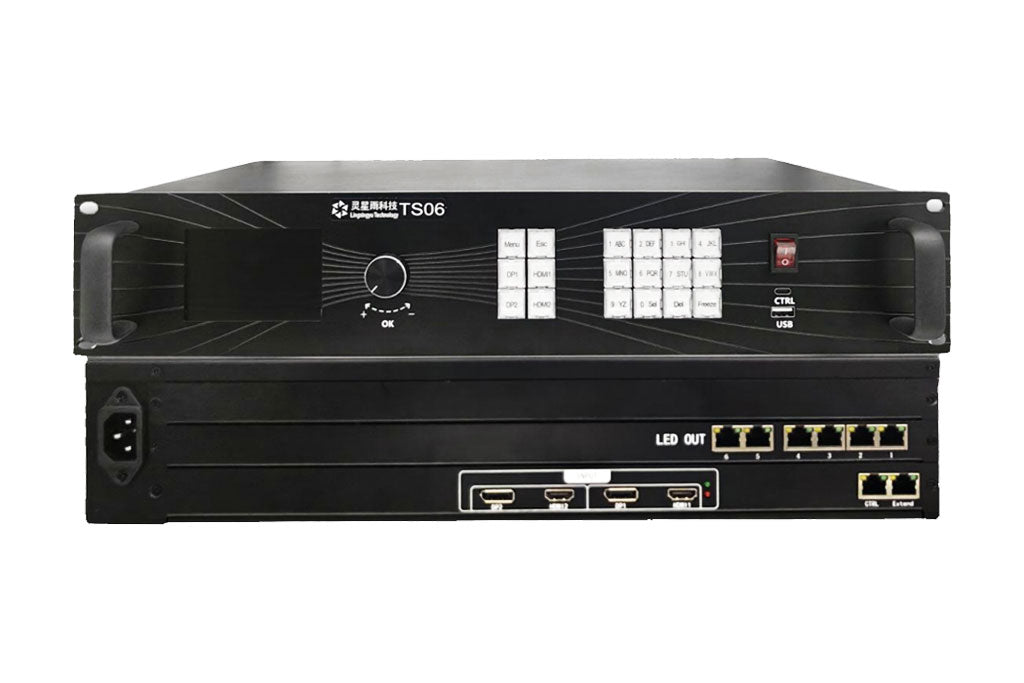

Linsn TS06 LED Sending Box

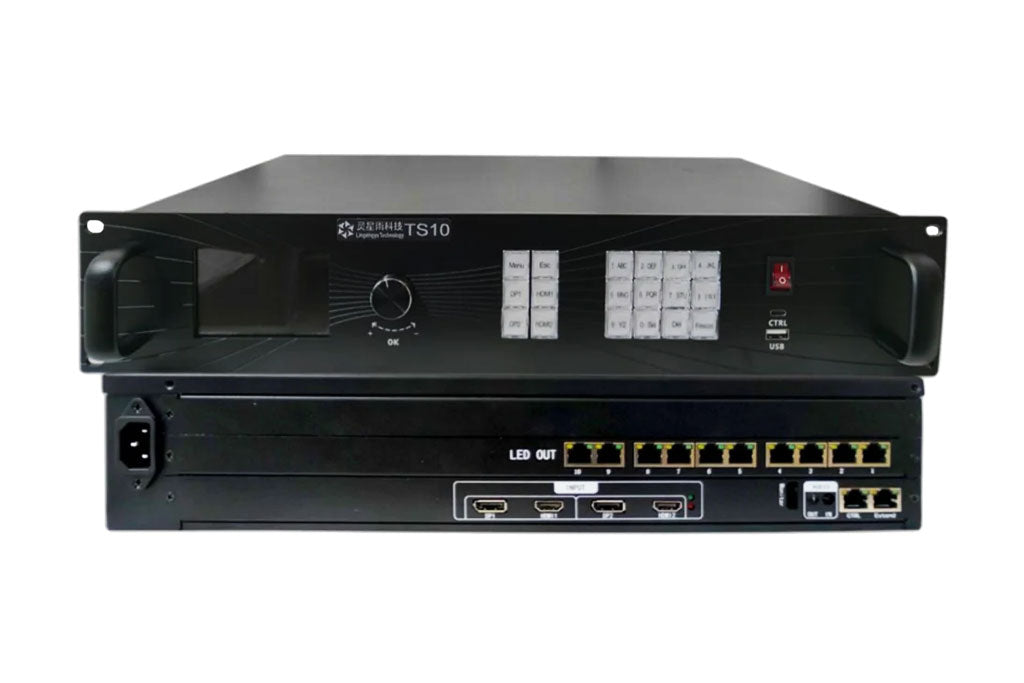

Linsn TS10 LED Sending Box

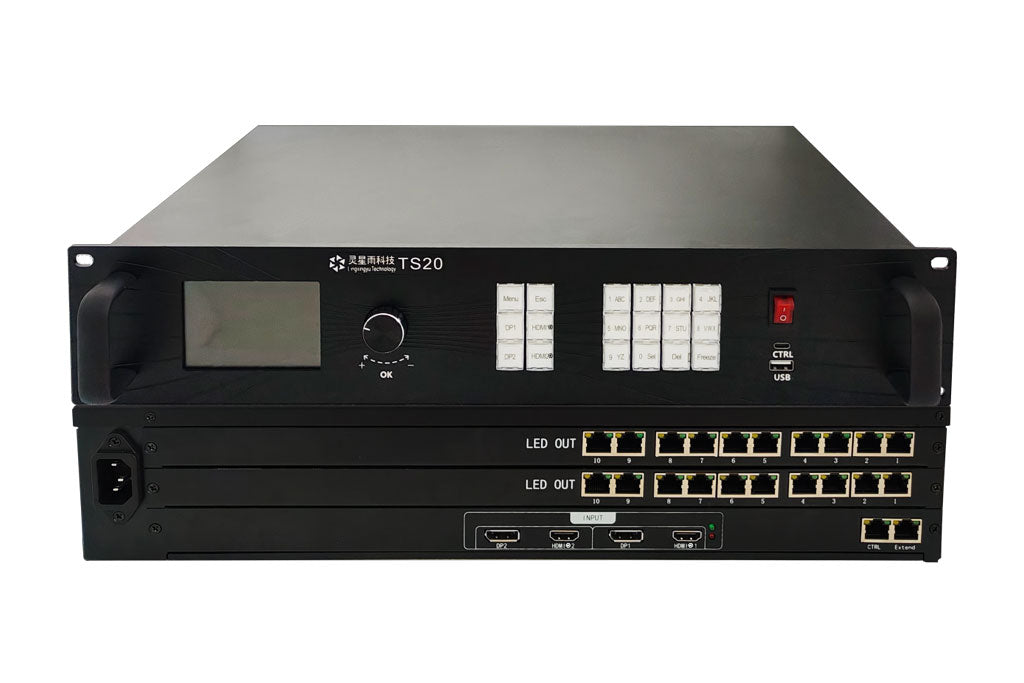

Linsn TS20 LED Sending Box

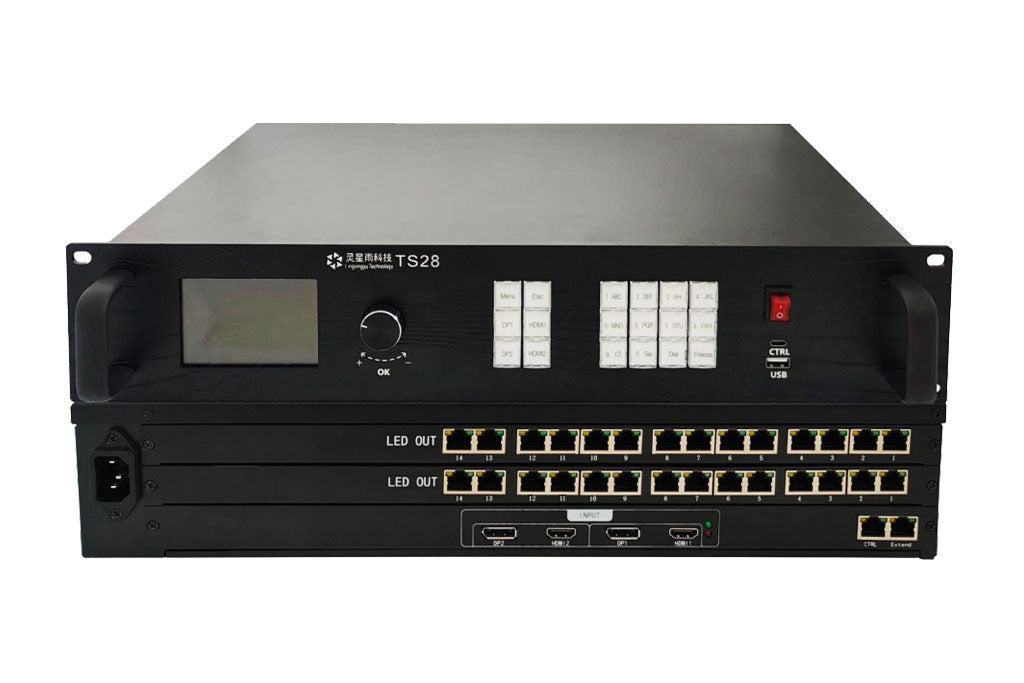

Linsn TS28 LED Sending Box

Linsn TS08 TS12 TS16 LED Sending Box LED Video Wall Controller

$330.00 USD $1,000.00
by Linsn
Type: LED Display Controller
Model Number
#Discount code: ---5% off [Over3000USD] | 10% off [Over6000USD]

TS big sender series is a series of 4K LED controller designed by LINSN. One device
supports 16.5million pixels most. It supports any resolution and 6/10/12/16/20/28 gigabit outputs to meet requirements for ultra large LED screen.

It has the following features:

1. Various inputs: HDMI®2.0*2, DP1.2*2
2. 6 model for the series: TS06/TS10/TS12/TS16/TS20/TS28, and supports 6/10/12/16/20/28 gigabit
outputs respectively
3. one device supports up to 16.5 million pixels
4. Two 4K video input for up-down or left-right splicing
5. Support setup via type-c cable or LAN cable
6. Supports schedule setup
7. Supports USB flash drive and cloud backup
8. Supports USB flash drive and cloud restore
9. License approval
10. Output detection


TS08

Support for a complete digital input interface
Support 8-channel Gigabit Ethernet port output
Single maximum load 4096x2160@60Hz
Support dual USB2.0 communication interface, USB debugging and cascading
Supports Linsn full range of receiving cards and multi-function cards

On-load: single maximum load 4096x2160@60Hz, single network port support: maximum width 15360 up to 8192
Interface: Input DVIx4 HDMIx1 output RJ45x8

TS12

Support for a complete digital input interface
Support 12-channel Gigabit Ethernet port output
Single maximum load 4096x2160@60Hz
Support dual USB2.0 communication interface, USB debugging and cascading
Supports Linsn full range of receiving cards and multi-function cards

On-load: single maximum load 4096x2160@60Hz, single network port support: maximum width 15360 up to 8192
Interface: Input DVIx4 HDMIx1 output RJ45x12

TS16

Support for a complete digital input interface
Support 16-channel Gigabit Ethernet port output
Single maximum load 4096x2160@60Hz
Support dual USB2.0 communication interface, USB debugging and cascading
Supports Linsn full range of receiving cards and multi-function cards
On-load: single maximum load 4096x2160@60Hz, single network port support: maximum width 15360 up to 8192
Interface: Input DVIx4 HDMIx1 output RJ45x16
