NovaStar (Class-A) LED Receiving Card NV3210 LED Display Controller
Novastar NV Series LED Receiving Card
NV3210 is a receiving card launched by Xi’an Nova Nebula Technology Co., Ltd. (hereinafter referred to as “NovaStar”), which supports color management, 18bit+, HDR, color correction on a per light basis, fast brightness and dark line adjustment, multi batch adjustment, low latency, 3D, RGB independent gamma adjustment, and 90 degree rotation of the screen, improving the display effect and enhancing the user experience. In addition, the product supports Flash management of the light board, which can store and retrieve correction factors and light board IDs.
NV3210 uses 10 standard HUB320F interfaces for communication, with high stability, supporting up to 40 sets of RGB real pixel data, 40 sets of 3-light dynamic sub-pixel data, or 30 sets of 4-light dynamic sub-pixel data.
- For PWM driver ICs, the maximum load resolution per card is:
− 512× 512@60Hz (The video source bit depth is 8-bit)
− 512× 256@60Hz (Video source bit depth is 10 bits and 12 bits)
For general driver ICs, the maximum load resolution per card is:
− 512× 512@60Hz (The video source bit depth is 8-bit)
Eliminate chromatic aberration and significantly improve screen picture quality
Support point-by-point brightness and chromaticity correction, with NovaLCT and NovaCLB, to correct the brightness and chromaticity of each lamp point, effectively eliminating chromatic aberration Make the brightness and chroma of the whole screen highly uniform and improve the picture quality of the display.
Seamless screen integration, no black screen
Support the pre-saved screen setting of the receiving card, which can set the specified picture as the power-on screen of the display. When the network cable is disconnected or there is no video source signal, it ensures that the display has no black screen and the picture is seamlessly connected.
3D support to create an immersive viewing experience
Support 3D function, with the independent master control and 3D glasses, you can get the cinema-grade immersive 3D shock effect.
Mapping positioning, easy to connect the screen
Support Mapping function, you can clearly get the location and alignment of the receiving card, so that the box connection is easy and simple, and the problem box can be quickly located.
Self-monitoring, all conditions are clear
Without other peripherals, you can check the temperature and voltage of the receiving card, detect the quality of network communication between the transmitting device and the receiving card or between the receiving card and the receiving card, and help eliminate hidden problems in network communication.
Program parameter readback, operation efficiency multiplied
Support firmware program and configuration parameters readback, can read back the receiver card's firmware program and configuration parameters and save them to local, avoid complicated operation and improve work efficiency.
Multiple backup, multiple protection
Support loop backup, configuration parameter backup and dual program backup to ensure smooth display playback to the maximum.
Input voltage: DC 3.3v-5.5v,
Constant current: 0.5A
Rated power: 2.5W
6 standard HUB320F connectors
Consumption temperature: – 20℃- + 70℃
Humidity: 10%RH-90%RH, non condensing
Temperature: – 25 ℃ – + 125 ℃
Size: 14.6mm x 91.5mm x 16.3mm
Weight: 104.5g
Passed: RoHS, EMC class A

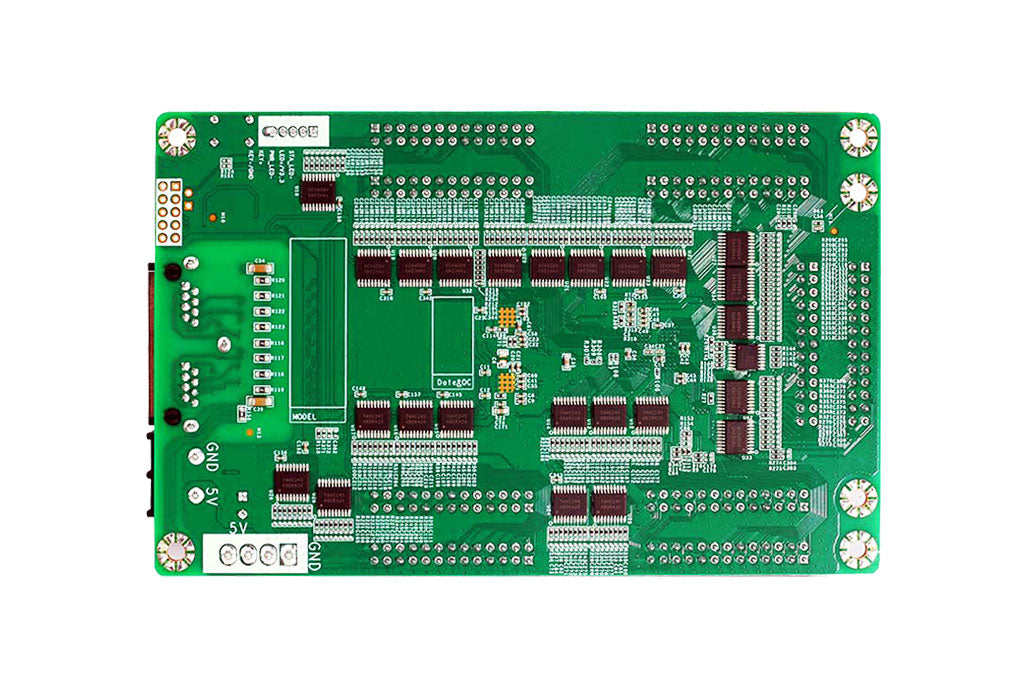

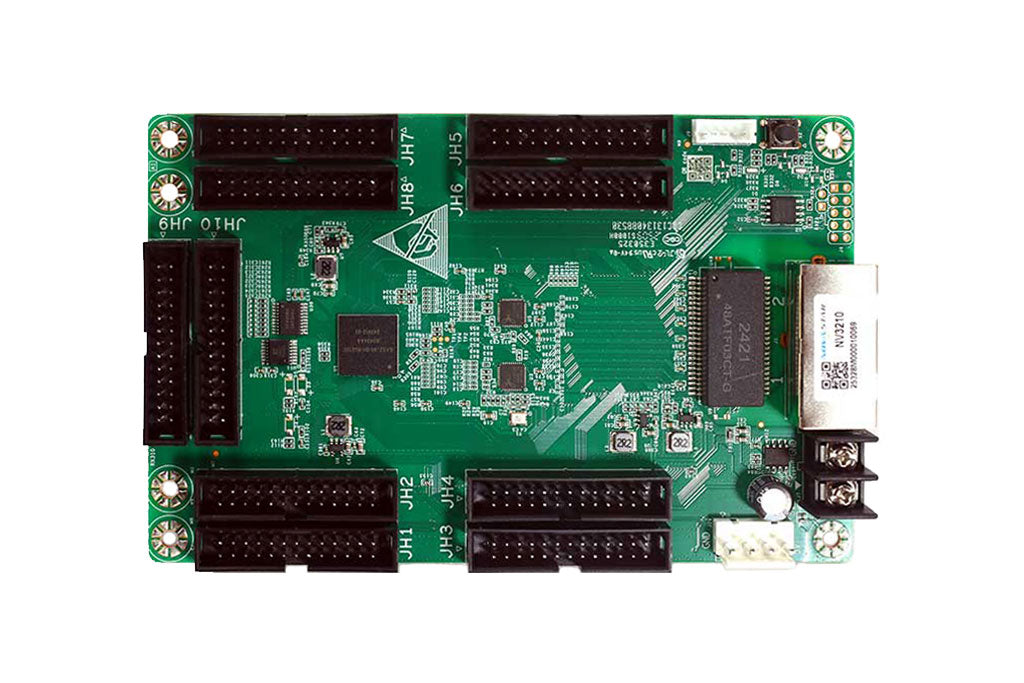

Novastar NV Series LED Receiving Card Appearance
Novastar NV Series LED Receiving Card Working Diagram
Further Information:
NVH3210
Novastar (Class-A) LED Receiving Card NV3210 Specification
