NovaStar Mctrl Series Mctrl700 Pro LED Sending Box Small Pitch LED Screen Controller
MCTRL700 Pro LED Display Controller Box
The MCTRL700 Pro is a high-performance LED display controller developed by NovaStar. It features 1x HDMI input, 1x DVI input, 1x AUDIO input, and 6x Gigabit Ethernet outputs, delivering reliable and efficient display control.
With a maximum resolution of 1920×1200 @ 60Hz and a minimum resolution of 800×600 @ 60Hz, the MCTRL700 supports a wide range of display configurations. It also allows for maximum widths up to 3840 pixels (3840×800 @ 60Hz) and maximum heights up to 3840 pixels (600×3840 @ 60Hz), ensuring flexibility for various screen layouts. The controller supports frame rates of 24Hz, 25Hz, 30Hz, 48Hz, 50Hz, and 60Hz for smooth video playback.
Designed for rental and fixed installations, the MCTRL700 supports gigabit Ethernet connections for control and device cascading, allowing up to 20 units to be linked for large-scale displays. It is ideal for concerts, live events, security monitoring centers, the Olympic Games, and various sports centers.
- Multiple Input Options:
1x SL-DVI (IN/LOOP)
1x HDMI 1.3 (IN/LOOP)
1x AUDIO Input
- High-Capacity Outputs:
6x Gigabit Ethernet outputs for seamless data transmission
- Efficient Control & Connectivity:
2x Ethernet control ports for connection to a control computer and device cascading
Supports cascading up to 20 devices
- Advanced Video Processing:
8-bit video source input for accurate color reproduction
Low latency mode reducing processing delay to 0-frame (<1 ms) when enabled
Pixel-level brightness and chroma calibration, ensuring consistent color and brightness across the display when used with NovaLCT and a calibration platform

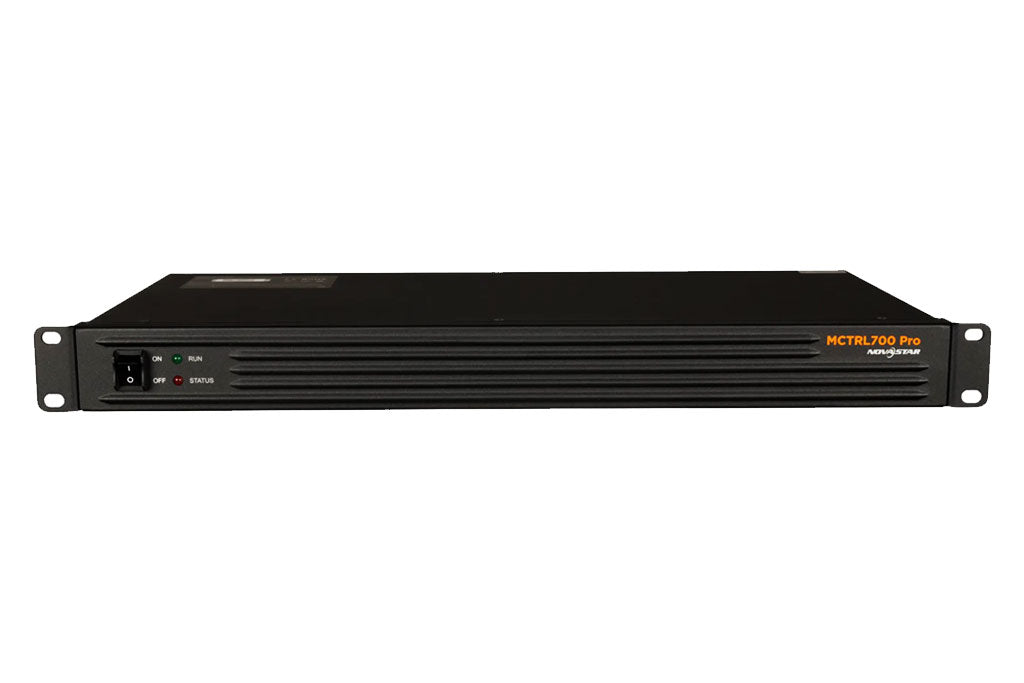

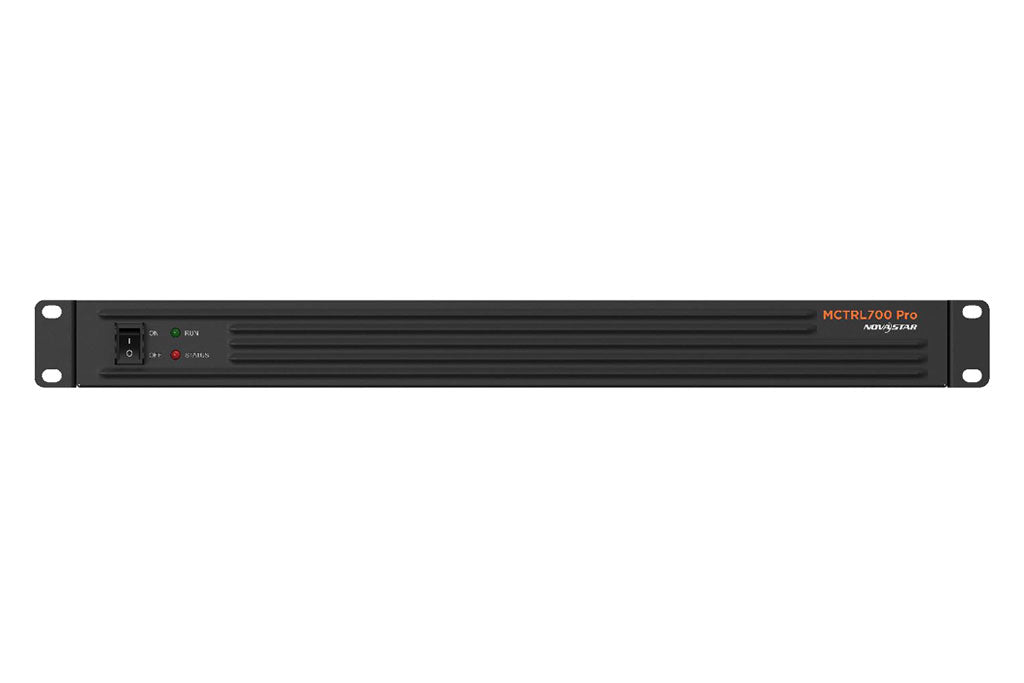

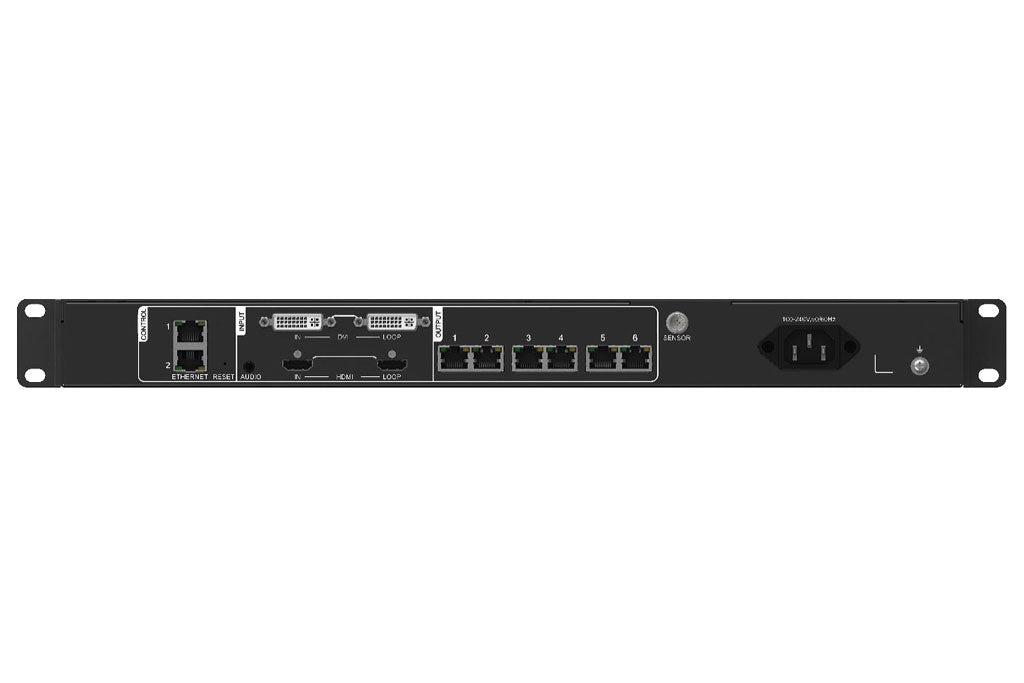

LED Display Controller Box Appearance
LED Display Controller Box Specifications
Electrical Specifications
Input voltage: AC 100V-240V, 50/60Hz
Rated power consumption: 17W
Operating Environment
Temperature: –20°C to +50°C
Humidity: 0% RH to 80% RH, non-condensing
Storage Environment
Temperature: –30°C to +80°C
Humidity: 0% RH to 95% RH, non-condensing
Physical Specifications
Dimensions: 482.6 mm × 250.6 mm × 43.6 mm
Net weight:2.6 kg Note: It is the weight of a single device only.
Gross weight:19.5 kg Note: It is the weight of 5 devices packaged in one packing box.
Packing Information Packing box: 585 mm × 465 mm × 353 mm Note: Each packing box can hold up to 5 devices.
Carrying case: 565 mm × 88 mm × 328 mm
Accessories: 1× HDMI cable, 1x Power cord, 1x Ethernet cable (1.5m)
