Huidu HD-RP375 LED Receiving Card 3-In-1 LED Display Control Board
$27.00 USD
Regular price
$45.00
by Huidu
Type:
LED Receiving Card
#Discount code: ---5% off [Over3000USD] | 10% off [Over6000USD]
Huidu LED Display Receiving Card HD-RP375
Huidu HD-RP375 is a 3-in-1 integrated controller, combining a built-in power module with support for both synchronous and asynchronous control systems. It converts 100V-240V AC to 4.2V DC to directly drive LED panels. With three on-board standard HUB75E interfaces and robust stability, it supports 6 sets of RGB parallel data and can control up to 98,384 (384x256) pixels.
- Dual-mode sending box, Asynchronous sending card, Synchronous sending card,
Video processor of VP series.
- Compatible with all common IC module, supported most PWM IC module.
- Support static module, any scan mode within 2~128 scan
- Supports any scanning method from static to 1/128 scan
- Receiving card can be put in any sequence
- A few simple steps to complete the smart settings, through the screen layout can be set to go with any alignment of the screen unit board
- Maximum loading capacity: 262,144 pixels (512*512)
| Product Model |
HD-RP375
|
| Loading capacity |
98,000 pixels (384 × 256)
|
| Data output | 6 group of RGB |
| HUB interface |
3×HUB75E
|
| Scanning | Static~1/128 |
| Point-by-Point Correction | √ |
| Rotate animation | √ |
| Smart Settings | √ |
| Mapping | √ |
| Light Board Numbering | √ |
| Monitoring Function | √ |
| Row/Column Extraction | √ |
| Non-Rectangular Loading | √ |
| Dual Program Backup | √ |
| Input Voltage Range |
90Vac - 264Vac
|
| Rated Input Voltage Range |
100Vac - 240Vac
|
| Peak Output Power | 65W |
| Rated Output Current | 13A (Peak Output Current Up to 15A) |
| Rated Output Voltage |
4.2V
|
| Operating Temperature (℃) |
-20℃~+50℃
|

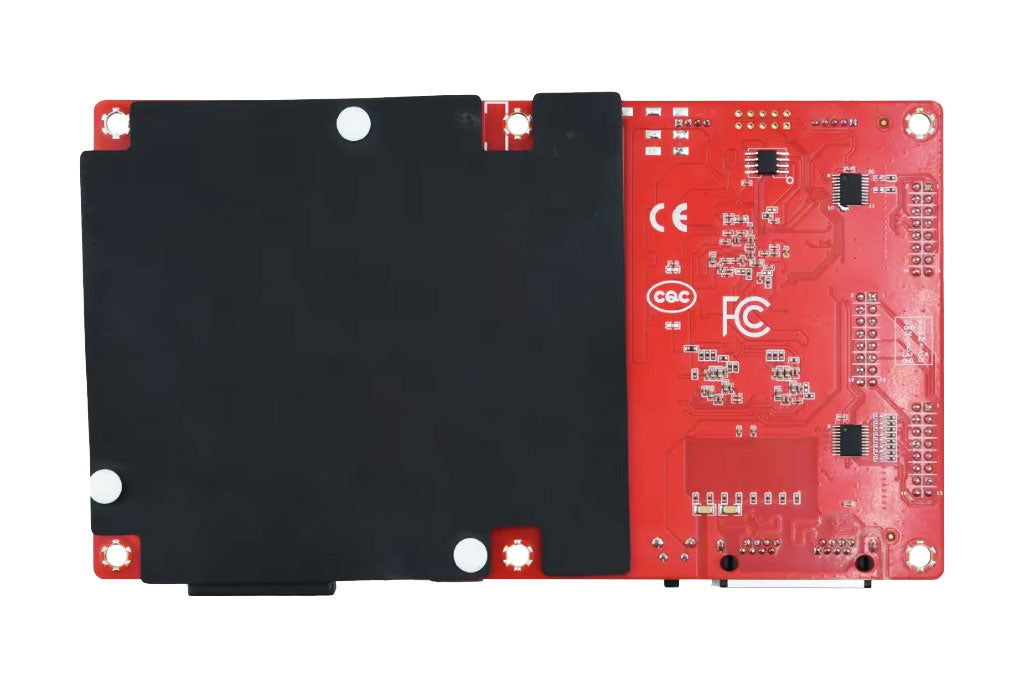

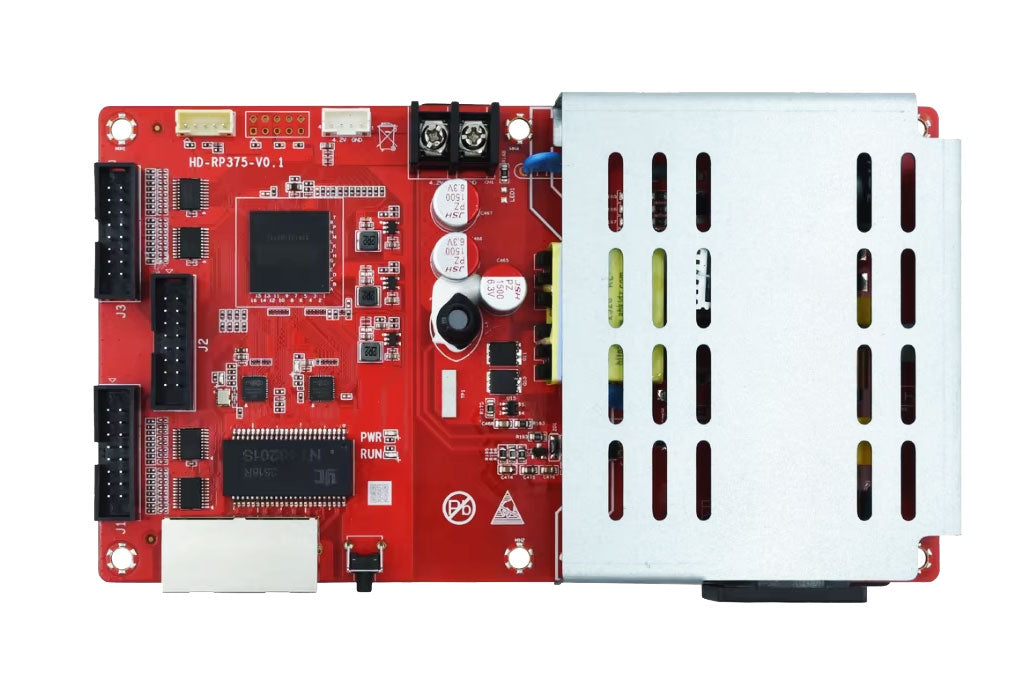

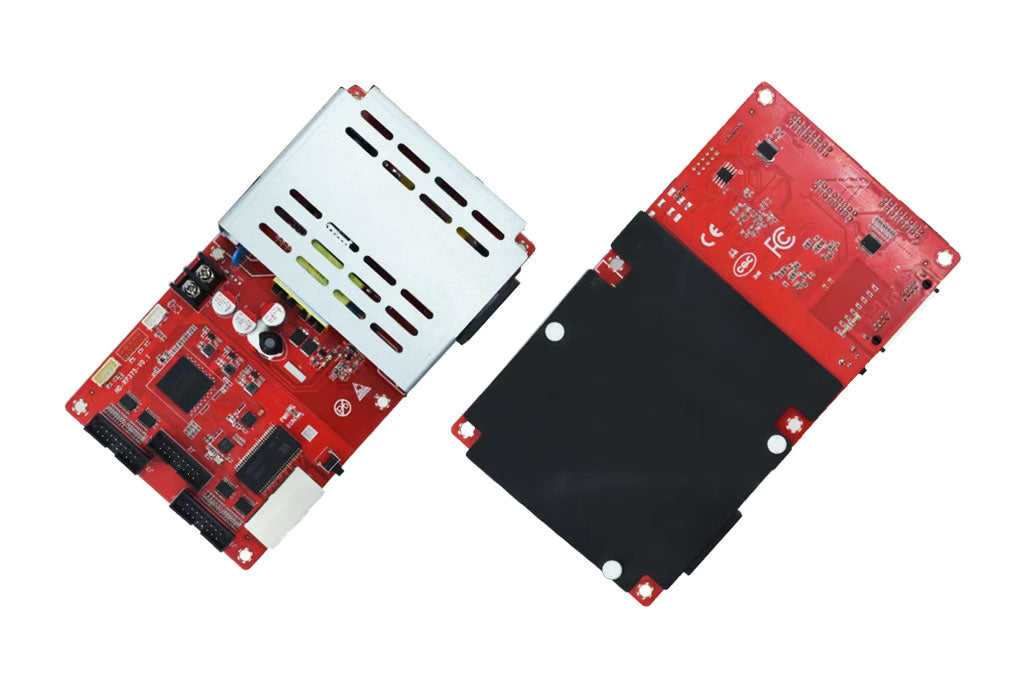

Huidu HD-RP732 3-In-1 LED Display Receiving Card Appearance
Huidu HD-RP732 LED Display Control Board Connection Diagram:
