HIKVISON DS-2TD1217B DS-2TD2636B Infrared Thermal Camera,Thermal Imaging Thermometer

$8,060.00 Regular price $15,000.00
SKU: set

HiKVISON Temperature screening series
HiKVISON Temperature screening series

Hikvision DS-2TD2617B/DS-2TD2636B Thermographic Bullet Body Temperature Measurement Camera is able to measure object's temperature at a high accuracy in real time. It is capable to discover and track people with higher body temperature among the crowded public area, it can be widely used in places such as customs, airport, school and hospital for inspection and quarantine.

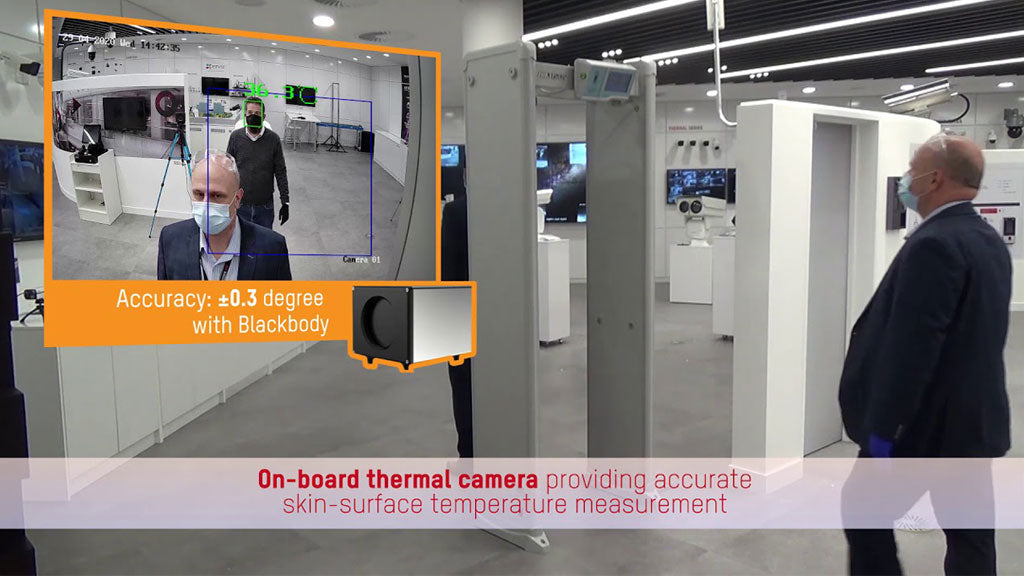

With advanced detectors and algorithms, Hikvision’s Temperature Screening Thermographic Cameras are designed to detect elevated skin-surface temperatures, and can thus be used for rapid and preliminary temperature screening in office buildings, factories, stations, airports and other public places, with accuracy up to ±0.3°C.
HiKVISON Temperature screening series
One second to detect skin-surface temperature of a person
Multi-person detection simultaneously
Non-contact measurement to avoid physical contact
Immediately alarming to notify operators
AI detection to reduce false alarms from other heat sources
HiKVISON Temperature screening series


Smart features.
Supports temperature anomaly detection
Support linkage sound alarm
Supports linked white light flashing alarm

Thermal imaging capabilities.
Non-cooled detector, resolution 160 x 120 (default 320 x 240 output)
Support AGC4.0, DDE, 3DNR
Supports dual light fusion image mode
Supports visible light superimposed thermal imaging picture-in-picture mode
Support white hot, black hot, iron red and other 15 kinds of false color patterns

Visible light function.
4 million star-level 1/2.7-inch high-performance CMOS; up to 2688×1520@25fps resolution.
Visible light supports low code rate, low latency, ROI region of interest enhanced encoding.
Support 3D digital noise reduction, support 120dB wide dynamic.

(b) Support for infrared fill light up to 30 m.
Support Smart IR, support anti-light over-exposure to turn on and off, turn on to support automatic and manual, manual support according to the distance level control of the brightness of the fill light
Supports independent configuration of two sets of parameters, day and night

System features.
Support dual channel single IP output.
Support dual code stream, support mobile phone alarm reception/view, support fluorite cloud platform access
Support for POE power
Supports IP67 rating for water and dust resistance and high reliability
Working environment: 15℃~35℃, <95% RH

Interface functions.
Support 10M/100M adaptive network port
Support Micro SD/Micro SDHC/Micro SDXC cards (128G/256G) for local storage
2-way alarm input/output
1 channel audio input/output
1-channel DC12V power input

Support HTTPS and other security authentication, support the creation of certificates
Support three levels of user rights management, IP address filtering, support for authorized users and passwords.


Product structure

Infrared camera, blackbody, tripods,
Pixel size:17μm
Thermal Sensitivity NETD:≤40mK
Focal length:3mm/6mm/10mm/15mm
Angle of view:15.96°×12° 25°×18.7°
Frame rate:50/60Hz
