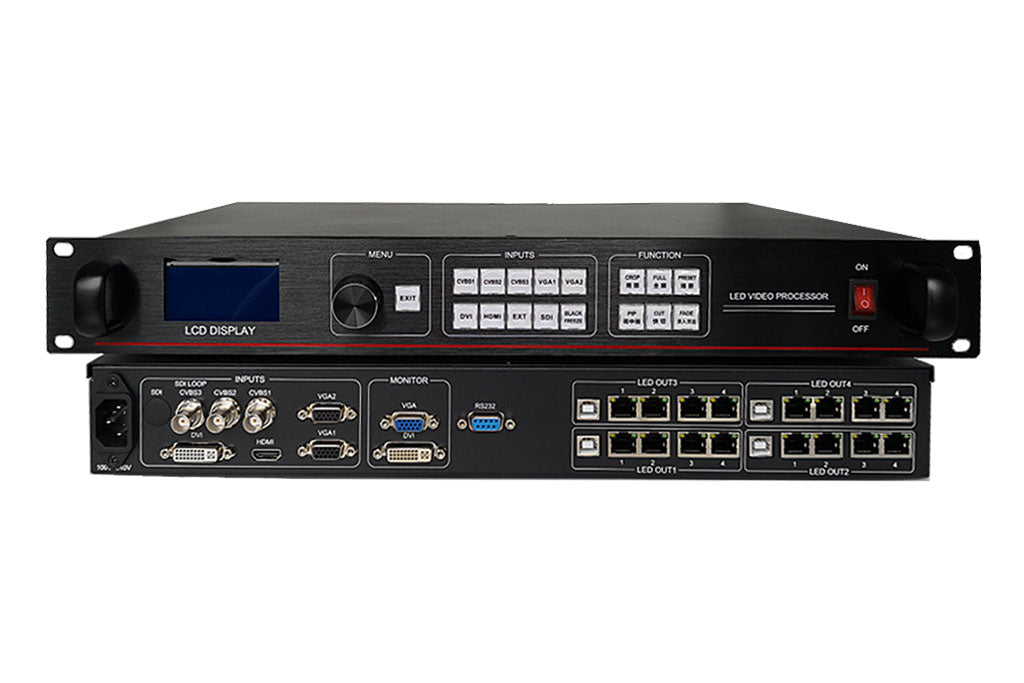

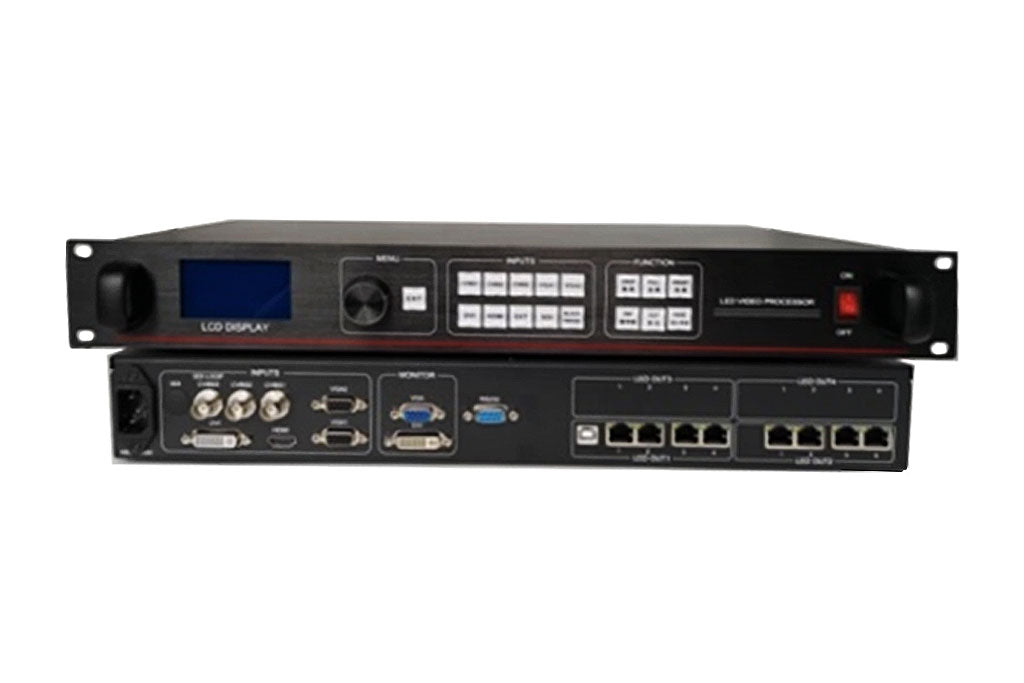

ECSR HD808 Pro HD812 Pro HD816 Pro LED Video Processor 2-in-1 LED Display Controller

$800.00 Regular price $2,400.00
by ECRS
Model Number
HD808/812/816 Pro is a 2 in1 video processor, which integrates the functions of synchronous sending card and video processor, supports 4K source video signal input and dual picture output, supports multi-channel video source arbitrary switching, audio input and output, etc..
  • Mode: HD808 Pro/HD812 Pro/HD816 Pro
  • Contol Range: 5.2million pixel/7.8million pixel/10.4 million pixel
  • Audio: input & output
  • U-disk Play: Not support
    Perfect combination with synchronous sending and video processing
    Integrated 8 network ports/12 network ports/16 network ports synchronous sending and video processor

    Support 4K video source signal input
    HDMI-A
    HDMl2.0, Backward compatible VESA Standard, <3840*2160@60Hz

    Multiple video input sources, arbitrary switching
    DVI/SDI/HDMI/DP/VGA
    EXT: Standard with DVI, support optional SDI

    8/12/16 network port output, support dual screen display
    PIP/POP

    Larger load range, wider control
    HD808 Pro
    Control range: 5.2 million pixels
    Widest: 7680 pixels, Highest: 7680 pixels

    HD812 Pro
    Control range: 7.8 million pixels
    Widest: 11520 pixels, Highest: 5760 pixels

    HD816 Pro
    Control range: 10.4 million pixels
    Widest: 15360 pixels, Highest: 7680 pixels
